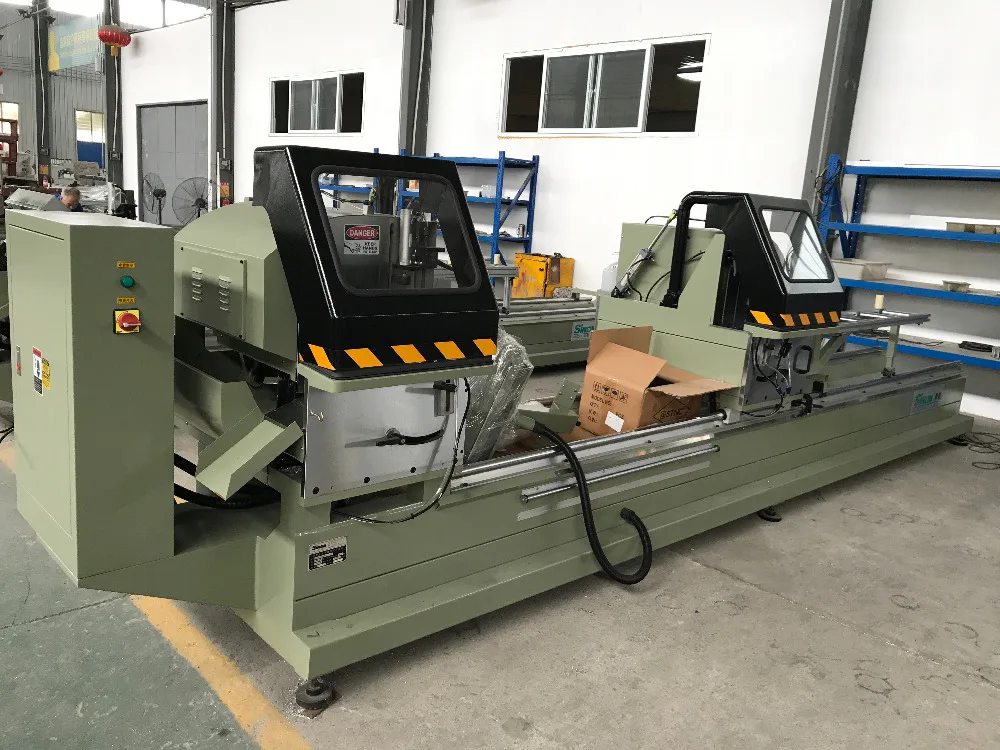

Aluminum Window Fabrication Equipment for Double Heads Cutting

FOB Reference Price:Get Latest Price
$6,000.00 - $9,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LJZ2B-500x4200
Max. Working Width:
4200mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works
Brand Name:
SINON
Voltage:
380V
Weight:
1800KG, 1800KG
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Production Capacity:
CNC
Power(W):
2.2kw*2
Dimension(L*W*H):
5500*1600*1700mm
Applicable Material:
PVC, UPVC, Aluminum
Product name:
Aluminum Window Fabrication Equipment
Application:
Cutting
Cutting Blade:
500mm, Japan WAGEN
Cutting Angles:
outward 45° / 90°
Cutting Width:
135mm
Cutting Height:
200-300 mm
Cutting Length:
450 -4200mm
Overall Dimension:
5500*1600*1700mm
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wood Case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Product Application

Aluminum Window Fabrication Equipment is used for making window door, to cut aluminum and PVC profiles.

Main Features

1.High Precision Automatic Double Mitre Cutting Saw.
2.Adopts industry PC system, the user can set parameters according profiles.
3.Cutting size changes quickly, high location precision with ±0.2mm.
4.Two-button operation can avoid the misoperation, protect the safety of operators.
8.Automatic sawing for 45° and 90° angles.
9.High precision linear system to ensure the saw lade running steady and precise.
10.Auto opening safe shield to make the user safe.
11.With middle profile supporter and movable carrier.
12.Phase sequence protection device, it can protect the machine once miscontact phase or shut off.

Technical Parameters
Power Voltage
220V /380V / 415V and other
Input Power
2.2KW *2
Motor Rotation Speed
2800 r/min
Air Pressure
0.5-0.8 MPa
Blade Specification
¢500mm *¢30mm*4.4mm
Cutter Feeding Speed
0-3M/min
Cutting Angles
outward 45° and 90°
Cutting Width
135mm
Cutting Height
45°:200mm  ;  90°:300mm
Cutting Length
Min: 0mm   Max.:4200mm
Repeat Location Length Tolerance
+/- 0.2mm
Overall Dimension
5500*1750*1700mm
Weight
1800 KG
Main Parts
Brand & Origin
A.C. contactor
Schneider ,France
Circuit breaker
Schneider ,France
Cutting Blade
WAGEN ,Japan
Solenoid Valve
AirTAC ,Taiwan China
Air Filter Device
AirTAC ,Taiwan China
Linear Guide Rail
HIWIN ,Taiwan China
Pressing Cylinder
EASUN , Italian Joint Venture
Stepper Motor of Saw Heads
Zhenyang /Sanyang , China Top Brand
Spindle Motor of Saw Heads ( Option )
ORMT , Italian Joint Venture

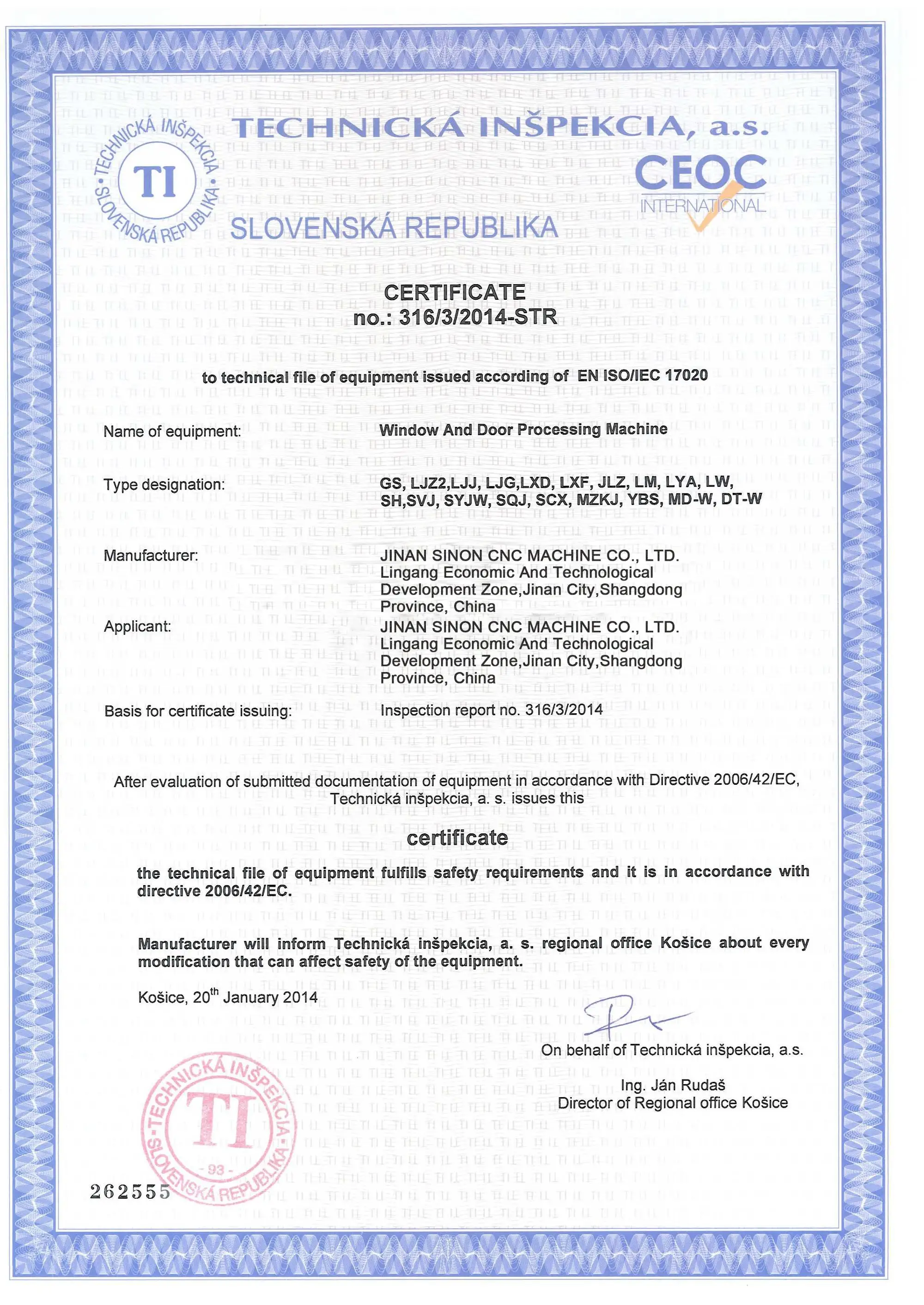

Certifications
Detailed Images

Machine Parts

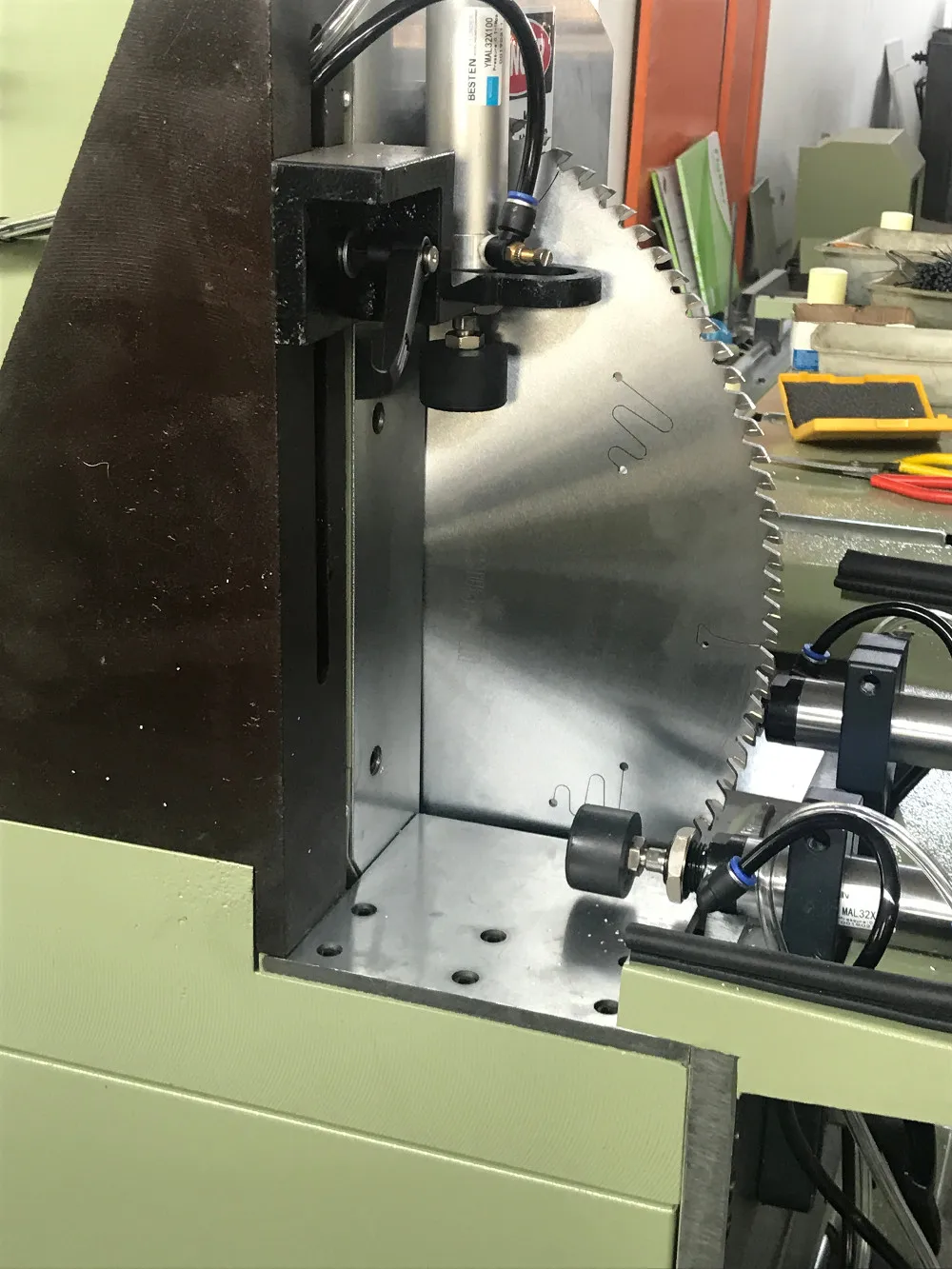

Name: Sawblade

Brand: WAGEN

Original: Japan

Carbide tipped sawblade from famous company WAGEN

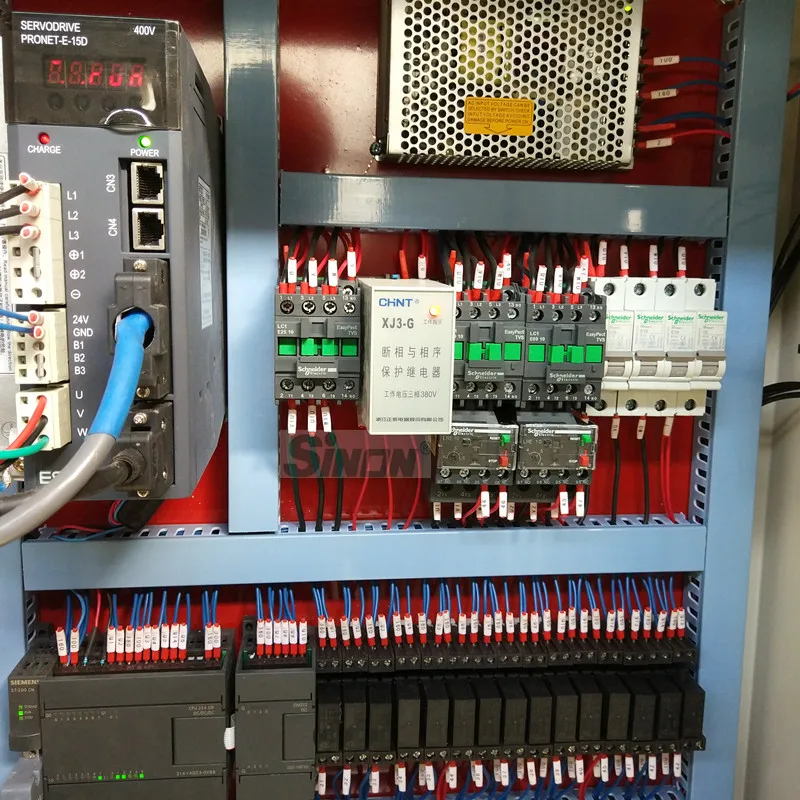

Machine Parts

Name: A.C. contactor & Circuit breaker
Brand: Schneider
Original: France

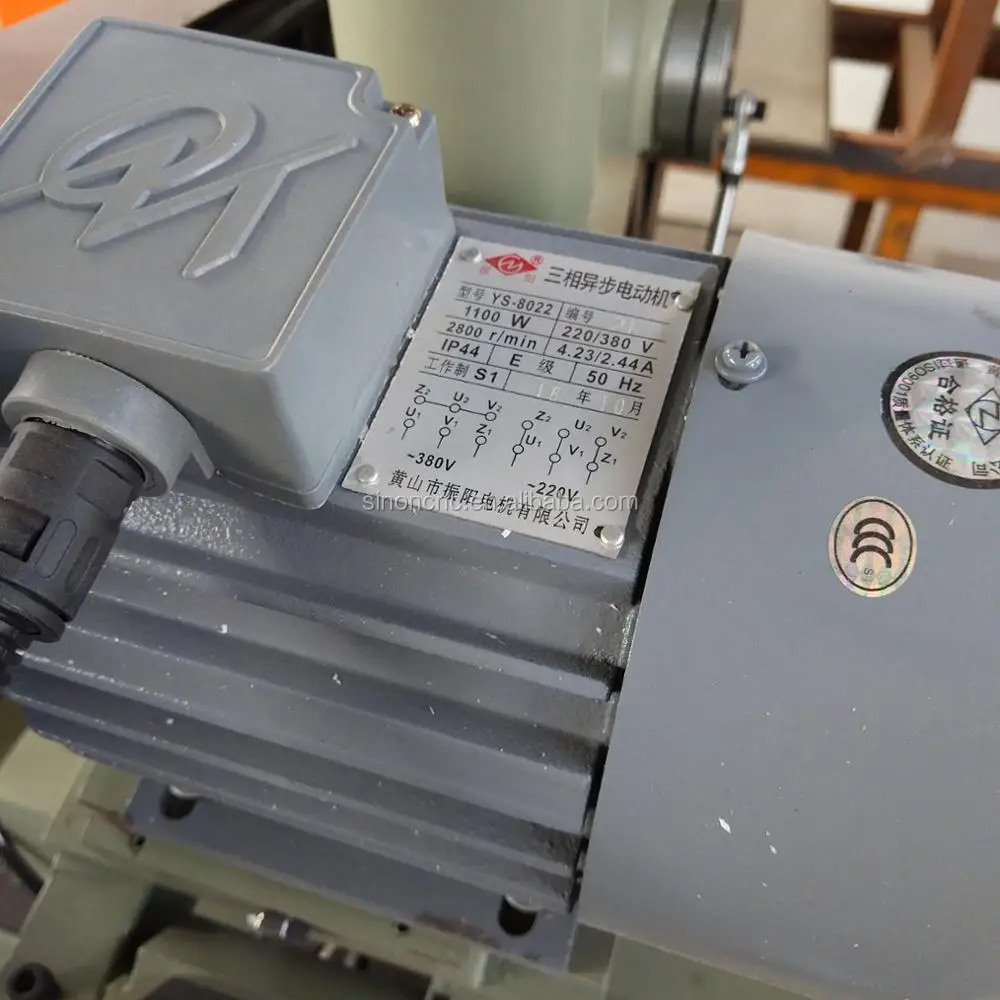

Machine Parts

Name: Stepper Motor
Brand: Zhengyang /Sanyang
Original: China
Top quality of Chinese motor manufacturer, high precision, low noise and low vibration.

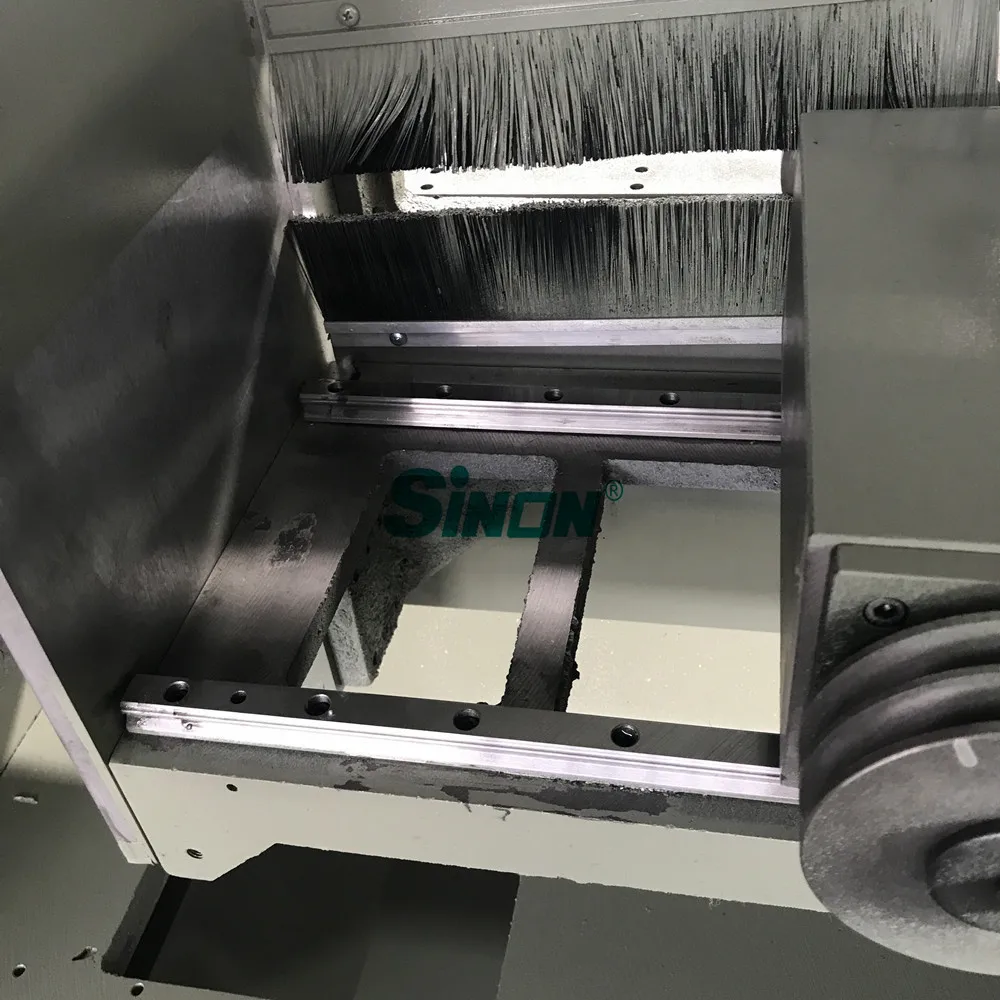

Main Features

Name: Linear slide rail

High positioning accuracy, not easy to wear, can maintain high precision for a long time

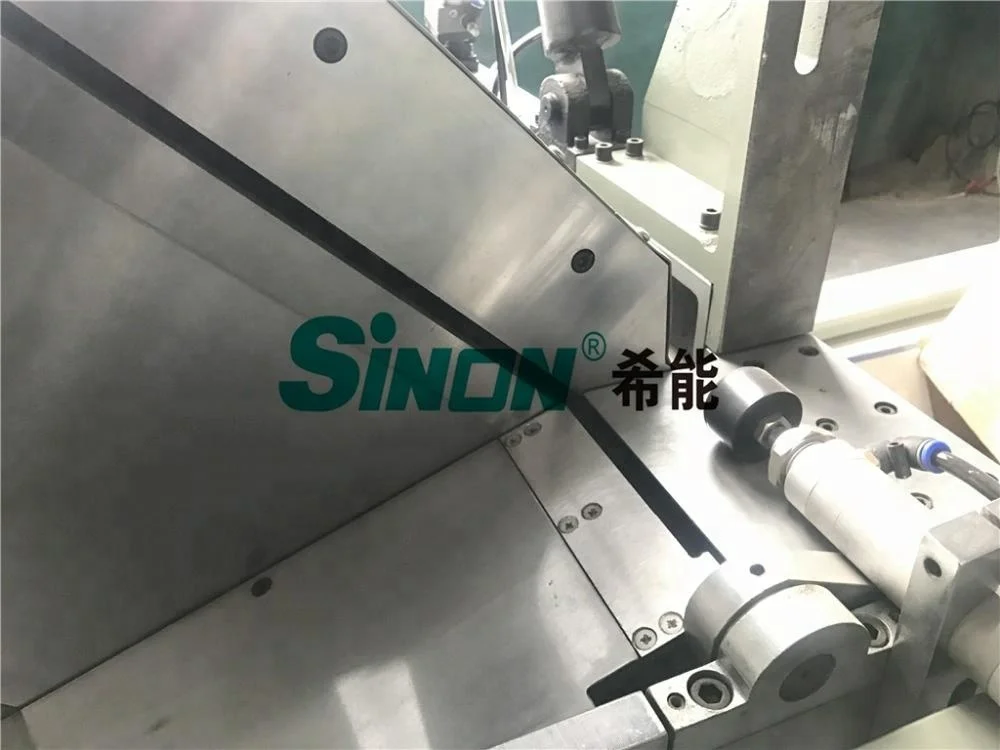

Machine Function

The adjusting knob behind of cylinder , can change feeding speed of notor and blade.So operator can adjust according the aluminium wall thickness.

If the profile wall-thickness is thick, should make it slow.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
5500*1750*1700mm
Weight
1800KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products
Our Company

About  SINON.

SINON - is well-known manufacturer of Industrial Aluminium Profile Process MachineAluminum Window Door Making MachineUPVC Window Door Making Machine . is one of the most professional company in the industry. SINON was founded in 2003, has more than 15 years of rich experience. the company production assembly workshop of 5000 square meters, mechanical processing workshop, sheet metal workshop 2000 square meters. As a professional research and development, manufacturing, sales and service team of innovative enterprise, the company's products cover PVC doors and Windows and aluminum doors and Windows equipment two major series of hundreds of products, has more than 20 technical patents,


Around 2010, the company was one of the best companies manufacturing UPVC plastic material cutting center, UPVC doors and Windows cleaning welding automatic production line, aluminum cutting center, four head corner combining machine. In 2012 developed china's first aluminum profile 4-axis CNC milling machine, 2015 developed China's first manufacturing sun room doors and Windows of large cross section of CNC double cutting saw, first developed CNC corner cutting center that can cut more than 10 yards. And apply for the two national invention patent.

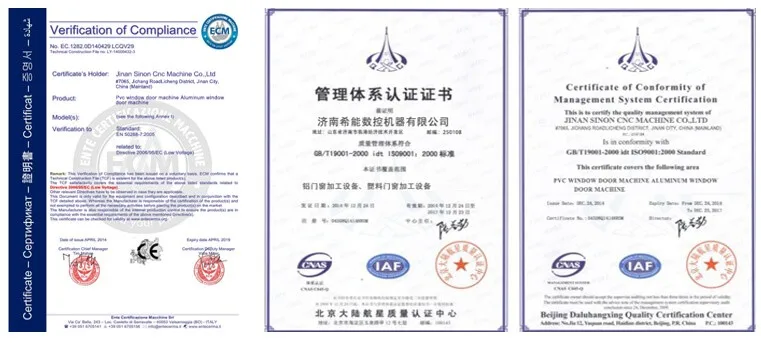

Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United States UL safety certification,

Our products are exported to more than 40 countries and regions, Central and Eastern Europe ,Middle East & North Africa,Southeast Asia ,North and South America we warmly welcome all customers come to jinan,come to Sinon company to visit, negotiate and cooperate.

Aluminum Window Fabrication Equipment for Double Heads Cutting

FAQ

1. Are you a trading company or a factory?
Factory and Trade ( integration)

2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 days.

3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

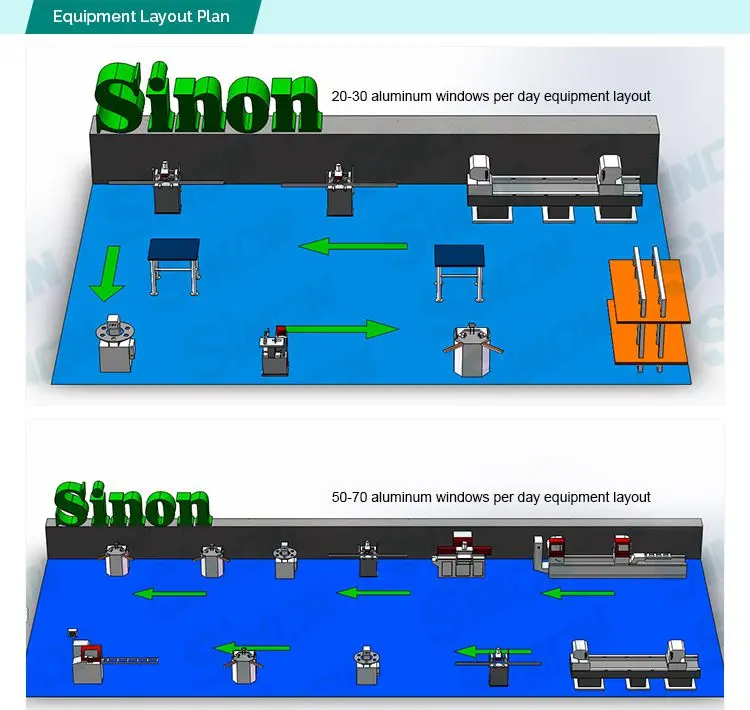

4. If I make Aluminum window and door, how many basic machines do I need?

1).Double /Single-head cutting saw
2). Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner combining machine
6).Punching hole machine
7).CNC milling center

5. If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2). Two /Three /Four Head Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).End Milling machine/V Cutting Saw
6).Lock hole Milling machine
7).Corner cleaning machine
8). Arch window bending machine
9). Screw Drilling Fastening Machine for steel lining

6. Can you customize the machine according to my request?

Yes. We have experienced engineers and technical team, can provide personalized service
