800mm Length CNC Center PVC Window Template Milling Machine

FOB Reference Price:Get Latest Price
$5,000.00 - $7,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LSKX-CNC-800
Max. Working Width:
800mm length
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Processing length (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works
Brand Name:
SINON
Voltage:
380V 50HZ
Weight:
800 KG
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Production Capacity:
0-9M/Min
Power(W):
5KW
Dimension(L*W*H):
1050*1500*1700mm
Applicable Material:
PVC, UPVC, Aluminum, Aluminium window door
Product name:
PVC Window Template Milling Machine
Function:
Milling Drilling
Machine Type:
CNC Automatic
Power supply:
380V /415V /Other
Input Power:
5KW
Spindle Power:
3.5KW
Turnable Angles:
-90 /0/+90 degrees
X-axis process range:
800 mm
Y-axis process range:
200 mm
Z-axis process range:
150 mm
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

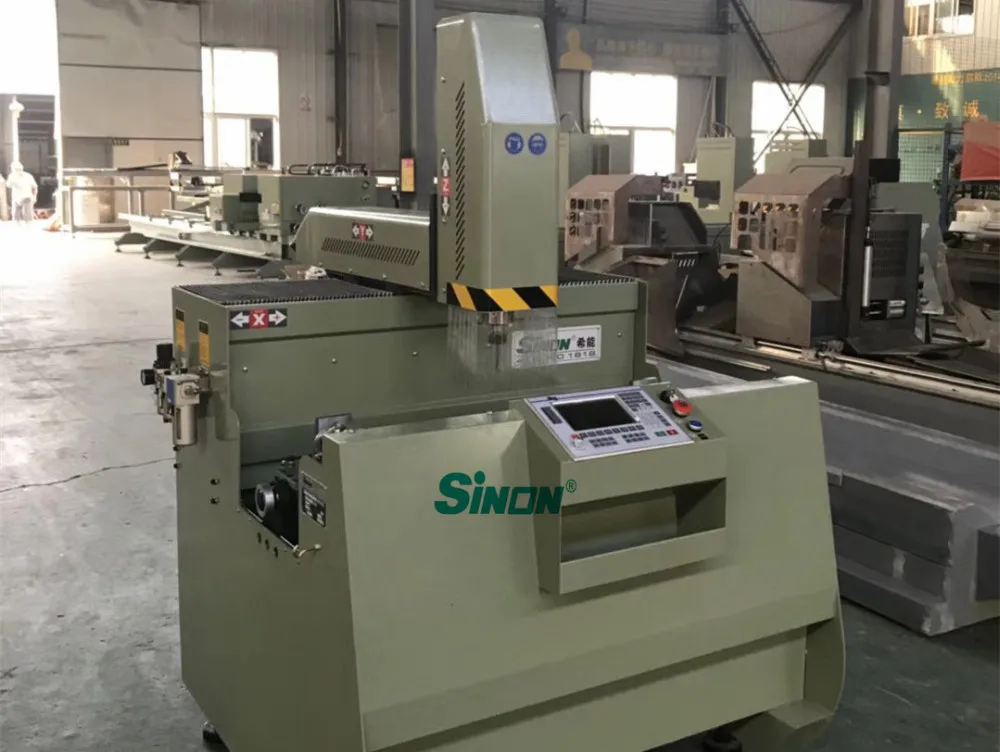

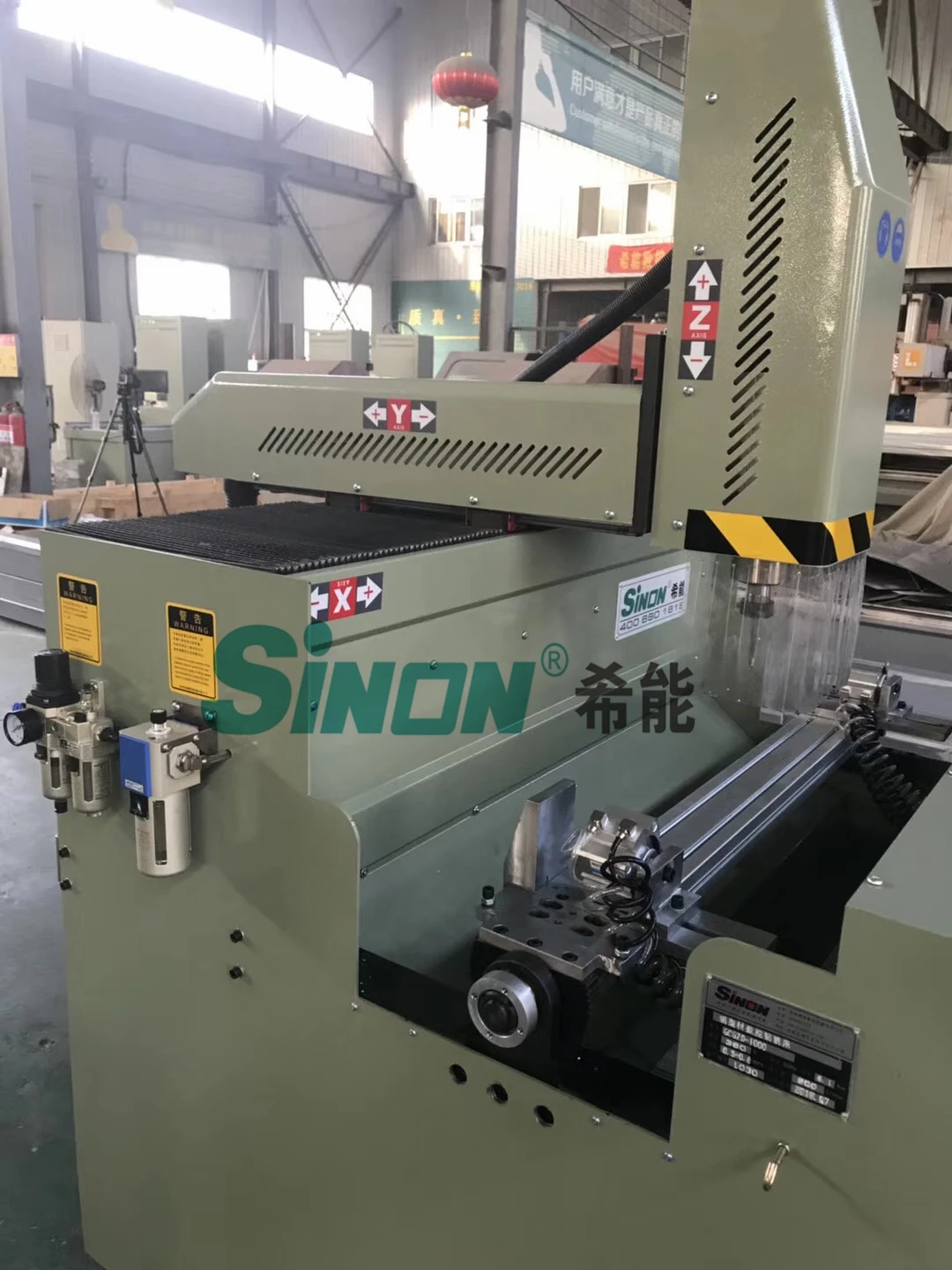

800mm Length CNC Center PVC Window Template Milling Machine

LSKX-CNC-800

Product Application

This machine is used for the processing of aluminum alloy profiles, aluminum-wood composite profiles, copper profiles and other lightweight alloys, as well as various hole types of U-PVC profiles.

Technical Parameters
X-axis process range
800 mm
Y-axis process range
200 mm
Z-axis process range
145 mm
X-axis feeding speed
0-9M /min
Y-axis feeding speed
0-9M /min
Z-axis feeding speed
0-9M /min
X-axis positional accuracy
+/- 0.05mm
Y-axis positional accuracy
+/- 0.05mm
Z-axis positional accuracy
+/- 0.05mm
Repeated positioning accuracy
+/-0.02mm
Spindle Power
3.5 KW
Rotate speed of Spindle
0-18000 rpm
Total input power
5 KW
Working Air Pressure
0.6-0.8 Mpa
Machine Dimension
1050*1500*1700mm
Weight
800 KG

Main Features

1.LSKX-CNC-800 is used for the processing of aluminum alloy profiles, aluminum-wood composite profiles, copper profiles and other lightweight alloys, as well as various hole types of U-PVC profiles. The one-time clamping can be switched between 0 degrees, -90 degrees and + 90 degrees.

2.This control system is a special system jointly developed by SINON and American START (Beijing) Co., Ltd. for all hole milling of high-end system doors and windows. After more than 100 door and window processing enterprises and more than 10 well-known hardware companies in China, the door and window processing technology has been optimized and upgraded for more than 10 years.

3.Three kinds of positioning methods. According to the processing scene can achieve system positioning, manual positioning, laser positioning to improve production efficiency.

4.Round rack, gear turning mechanism, the speed is the fastest in the industry, can increase production efficiency by 30%.The high-speed electric spindle adopts a special-purpose three-disc ceramic bearing specially designed by Italian technology, which has low noise and better durability.

5. According to the domestic well-known profile factory custom tungsten carbide special milling cutter, with a micro spray life is 5 times that of ordinary milling cutter, noise reduction of 40%. Coolant savings of 20 times. Give the operator a good environment.

5.The Z-axis uses a brake motor to prevent damage to the milling cutter and the spindle caused by a sudden power failure or a Z-axis slip after power failure.

6. The guide screw is equipped with a micro-lubrication system, which greatly improves the accuracy and service life of the equipment.
This machine is equipped with pneumatic drawers, which is convenient, hygienic and fast.

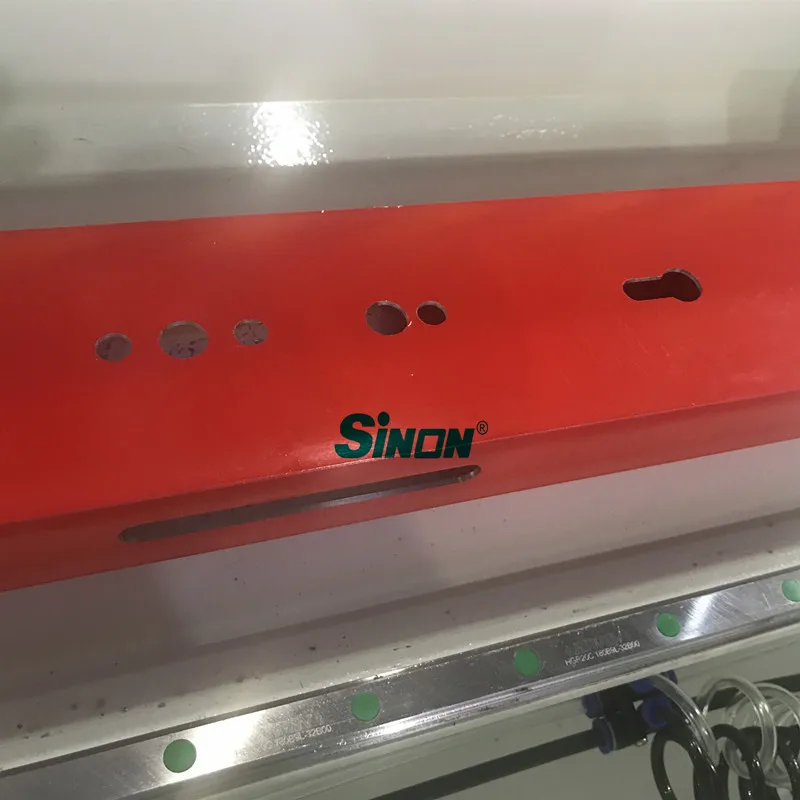

7.The system can achieve international standard G code programming, library programming, CAD drawings directly imported processing. The various hole types for door and window processing can be directly operated and easily understood in the library programming.

8.This system has fast tool setting function and no need to re-find the processing zero point function, which greatly improves the efficiency in the actual production process.

9.This system can store more than 100 program names, and the processing program can be quickly transferred to use.
Standard Accessory
Name
Supplier
Origin
1
Control System
START
America
2
Stepper Driver
Leadshine
China
3
Stepper Motor
Leadshine
China
4
A.C. contactor
Schneider
France
5
Circuit breaker
Schneider
France
6
Phase sequence protection relay
Schneider
France
7
Isolation transformer
Lanpuele
China
8
Switching Power Supply
Mean Well
Taiwan
9
Proximity switch
Contrinex
Switzerland
10
Precision ball screw
HIWIN
Taiwan
11
Precision linear guide
HIWIN
Taiwan
12
Precision linear slider
HIWIN
Taiwan
13
High Speed Spindle
Selan
Italy-China
14
Frequency converter
Hpmont
China
15
Tungsten steel bit
Duebro
Germany
16
Cylinder / Solenoid valve
AirTAC
Taiwan
17
Laser sheet metal parts
Hongxin
China
Certifications
Detailed Images

Machine Parts

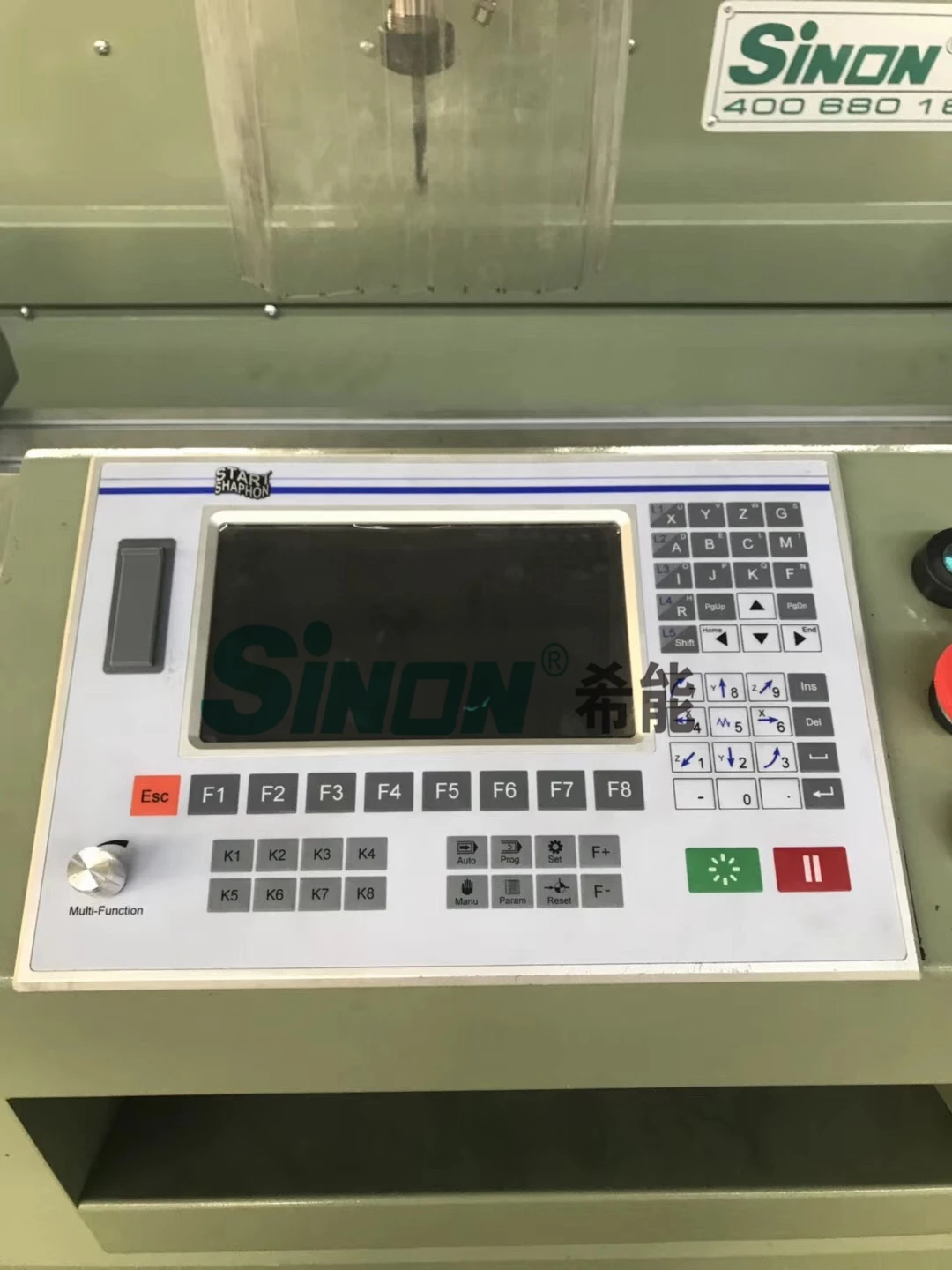

Name: Control System

Brand: START

Original: America

This control system is a special system jointly developed

by SINON and American START (Beijing) Co., Ltd. for all

hole milling of high-end system doors and windows.

Main Features

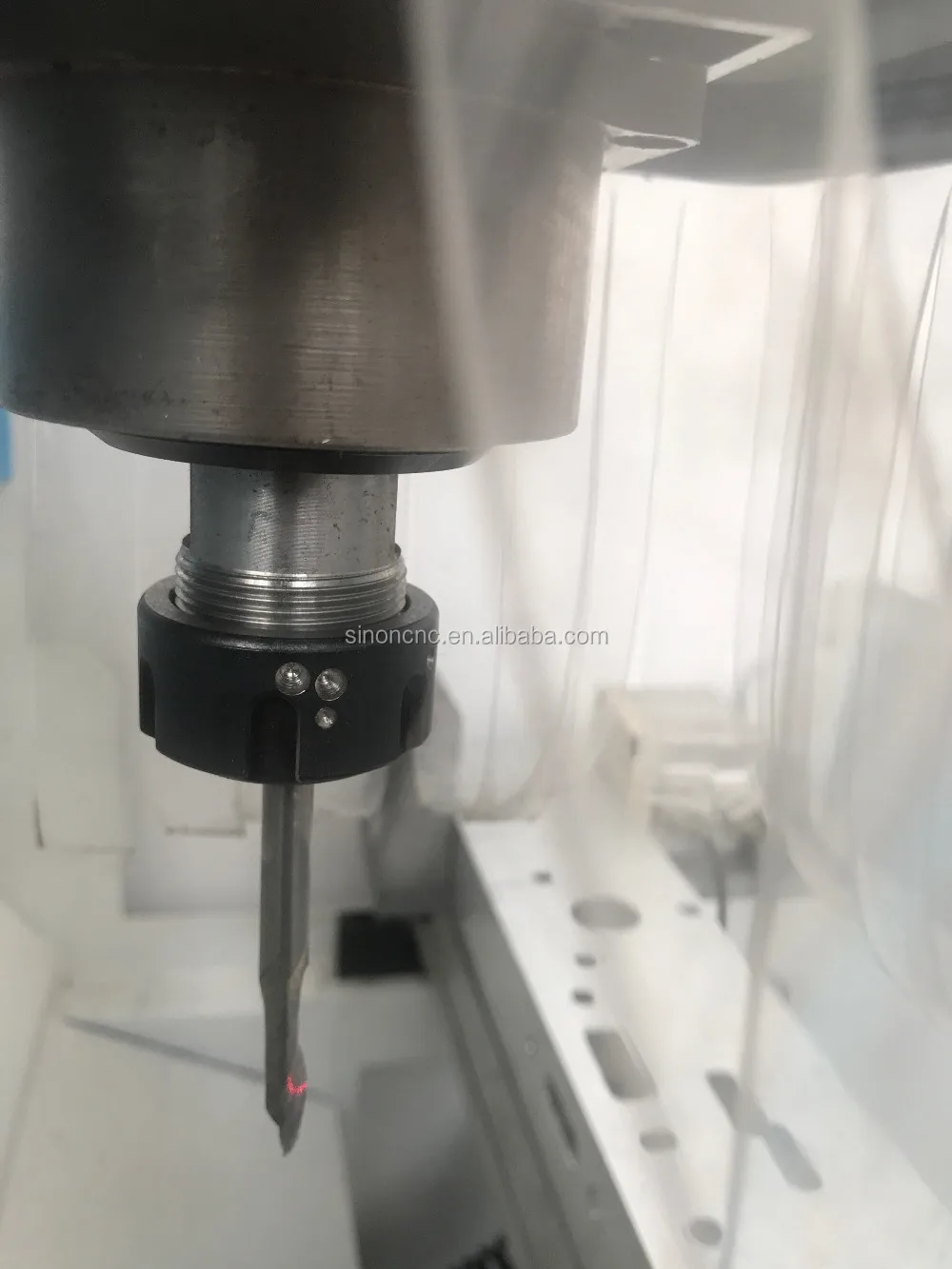

Name: Spindle
Brand: SELAN
Original: Italy
Adopts a special-purpose three-disc ceramic bearing specially designed by Italian technology, which has low noise and better durability.

Machine Parts

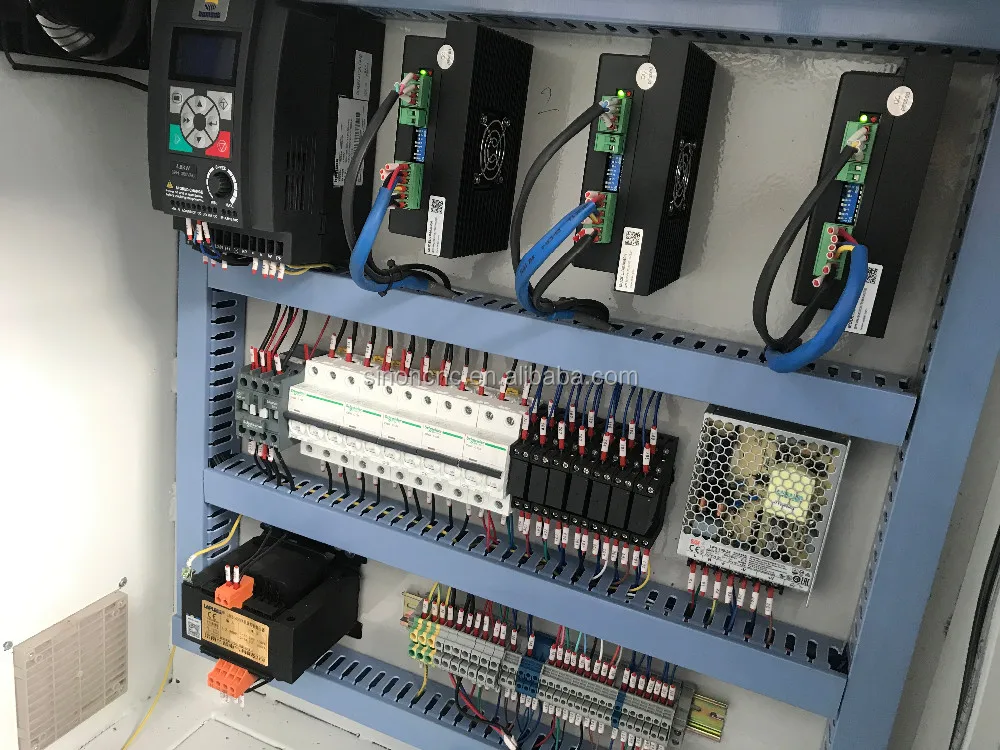

Name: A.C. contactor & Circuit breaker
Brand: Schneider
Original: France

Main Features

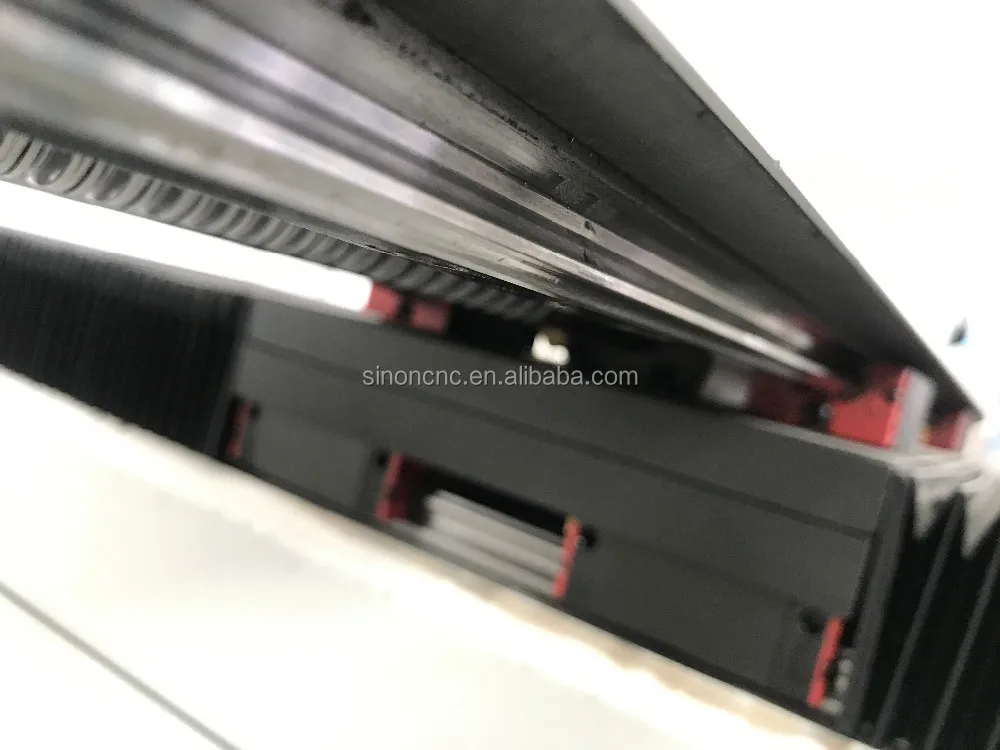

Name: linear guide & linear slider
Brand: HIWIN
Original: Taiwan,China
Higher precision for machine movement,the processing job will be more steady.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1200 (L) * 1700 (W) * 2050(H) mm
Weight
900KG



Packaging Details



Plastic Film
Wood Case
Related Products

Double Mitre Cutting Saw CNC

91.8% Response Rate

       DoubleHead Cutting Saw

91.8% Response Rate

       Heavy Duty Copy Router

91.8% Response Rate

Our Company

About SINON

SINON - is well-known manufacturer of Industrial Aluminium Profile Process Machine, Aluminum Window Door Making Machine, UPVC Window Door Making Machine . is one of the most professional company in the industry. SINON was founded in 2003, has more than 15 years of rich experience. the company production assembly workshop of 5000 square meters, mechanical processing workshop, sheet metal workshop 2000 square meters. As a professional research and development, manufacturing, sales and service team of innovative enterprise, the company's products cover PVC doors and Windows and aluminum doors and Windows equipment two major series of hundreds of products, has more than 20 technical patents,

Around 2010, the company was one of the best companies manufacturing UPVC plastic material cutting center, UPVC doors and Windows cleaning welding automatic production line, aluminum cutting center, four head corner combining machine. In 2012 developed china's first aluminum profile 4-axis CNC milling machine, 2015 developed China's first manufacturing sun room doors and Windows of large cross section of CNC double cutting saw, first developed CNC corner cutting center that can cut more than 10 yards. And apply for the two national invention patent.

Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United States UL safety certification,

Our products are exported to more than 40 countries and regions, Central and Eastern Europe ,Middle East & North Africa,Southeast Asia ,North and South America we warmly welcome all customers come to jinan,come to Sinon company to visit, negotiate and cooperate.

PVC Window Template Milling Machine

FAQ

1. Are you a trading company or a factory?
Factory and Trade ( integration)

2. When can we arrange shipment?

We usually arrange shipment within 15 days after getting deposit,But customized machines should be more than 25

days.

3. Do you provide equipment operation training after sale?

Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner combining machine
6).Punching hole machine

5. If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2). Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine

6. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
